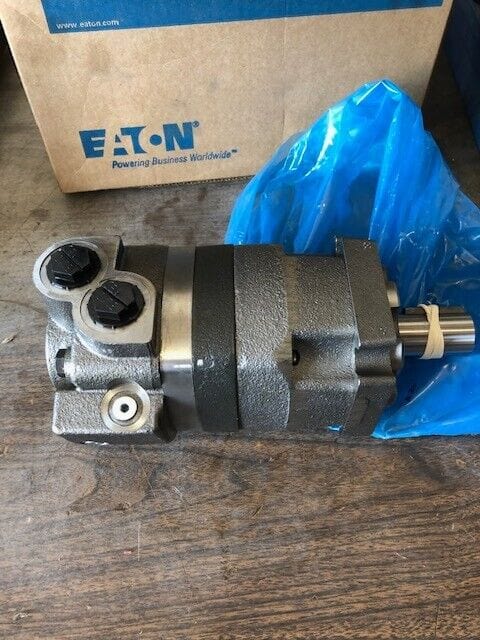

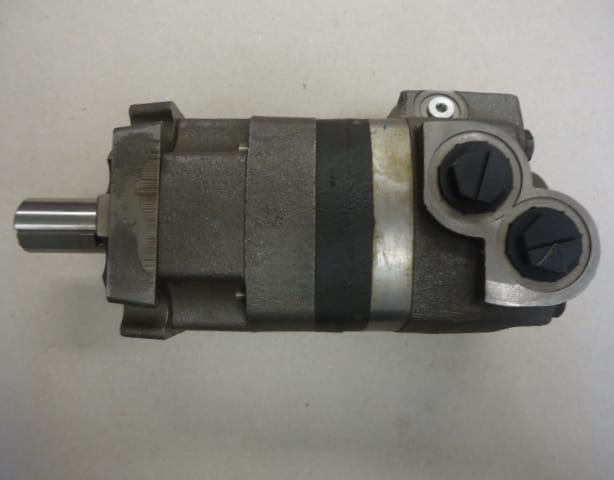

Eaton Charlynn 109-1101-006 motor | Eaton Charlynn 109-1101-006
ADVANCEHYDRAULICWORKS Products
918527109985
Chat with us
This is your website preview.
Currently it only shows your basic business info. Start adding relevant business details such as description, images and products or services to gain your customers attention by using Boost 360 android app / iOS App / web portal.
Other Specifications
| Sub brand CHAR-LYNN : | Char-Lynn |
| Main port : | thread type UN / UNF |
| Main port style : | Sideport - staggered |
| Shaft dimension Dia. : | 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end |
| Shaft Key : | Square key, 5/16 x 1 5/8 inch |
| Geometric displacement [cm3/r [in3/r]] : | 130.3 [7.95] |
| Mounting flange type : | 4 Bolt - Square |
| SHAFT TYPE : | Straight |
| Motor size : | 130 |
| Motor Series : | 4000 Series |
| Valve system : | Disc valve with valve drive |
| Orbital gearwheel set type : | Geroler |
